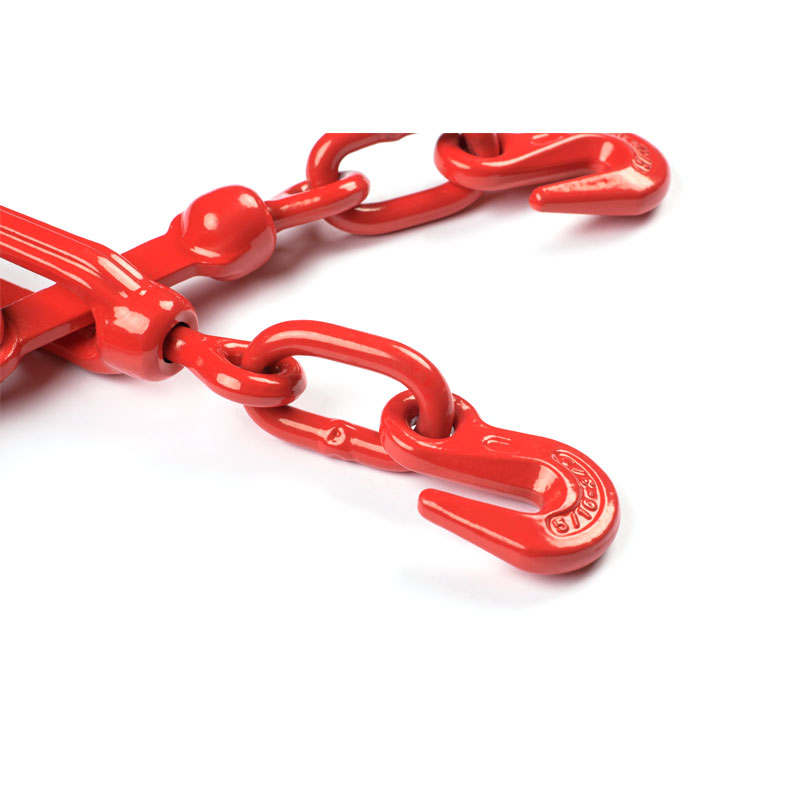

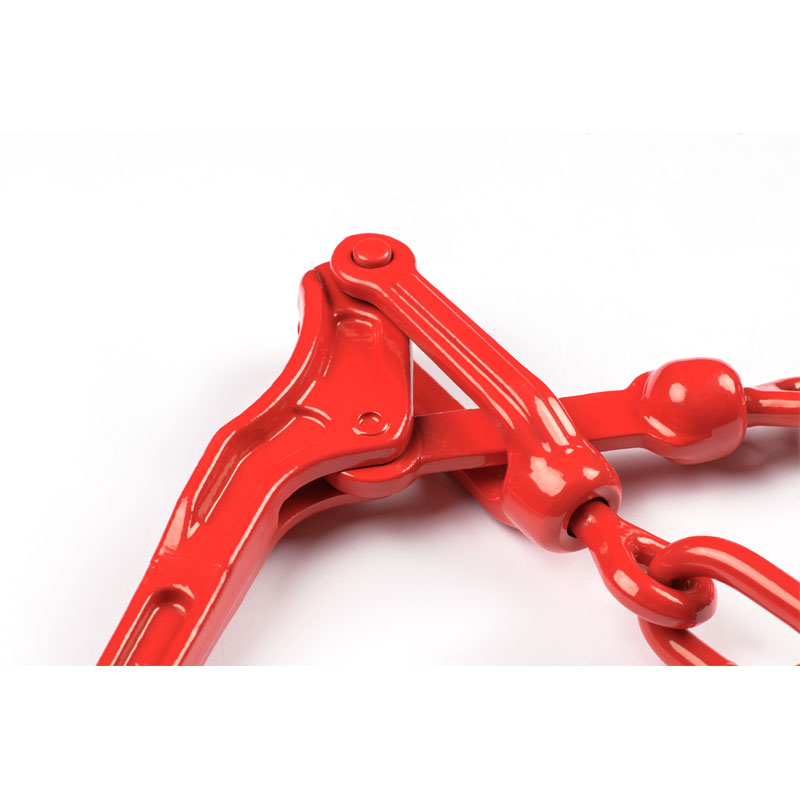

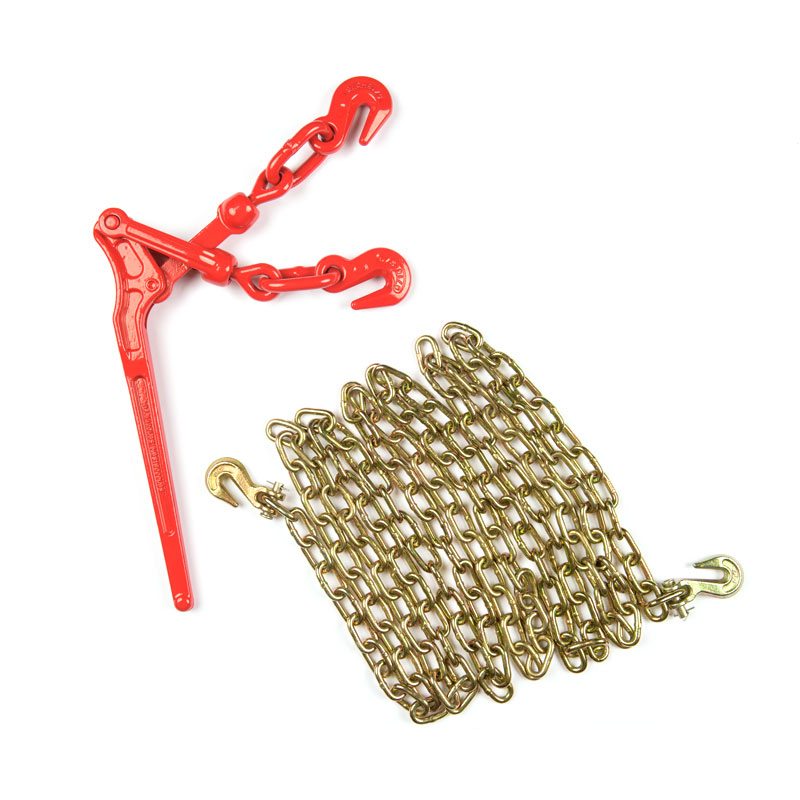

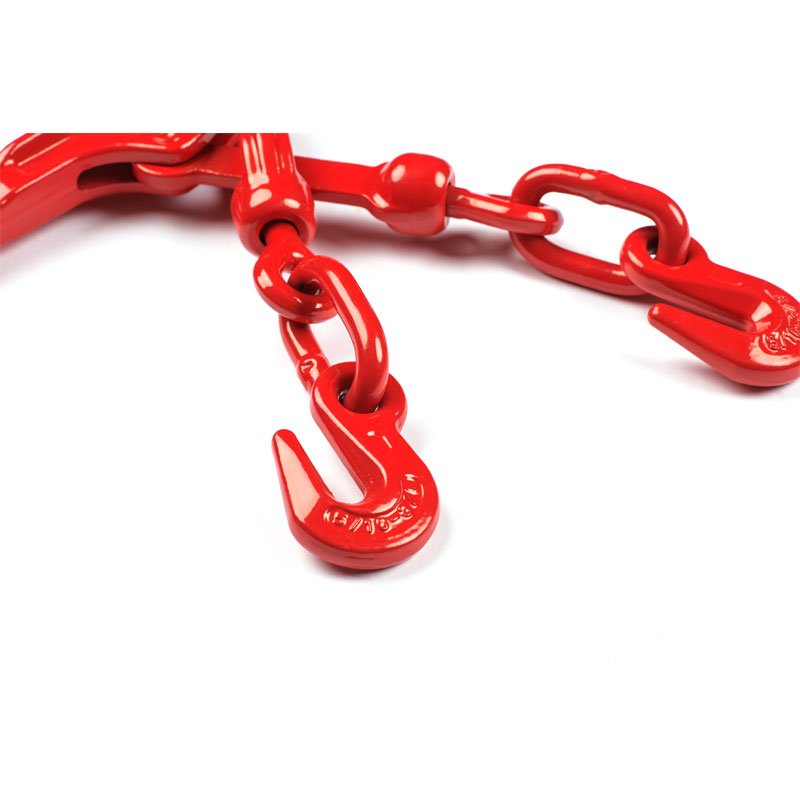

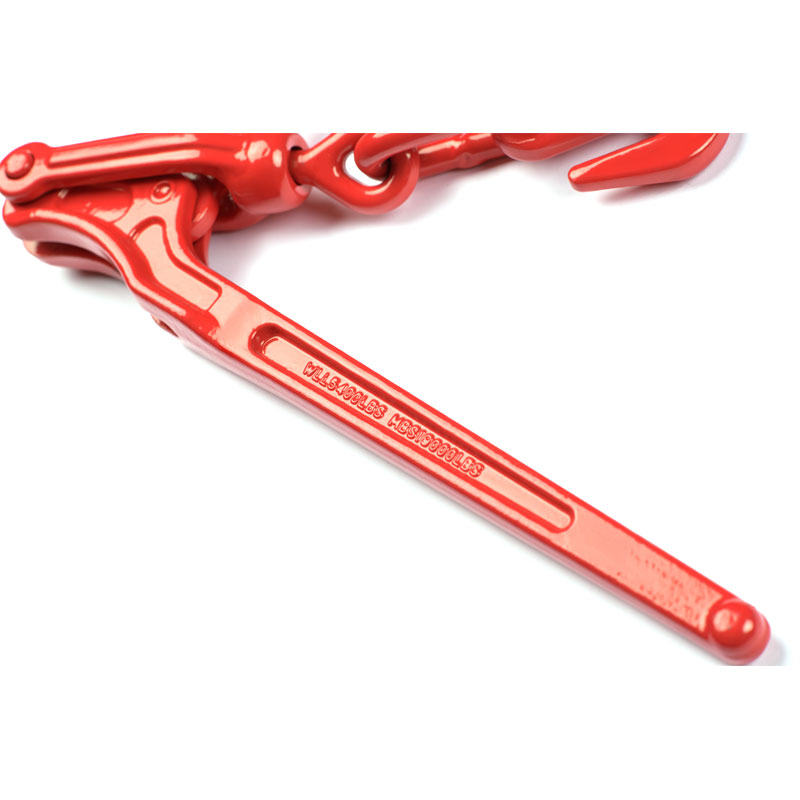

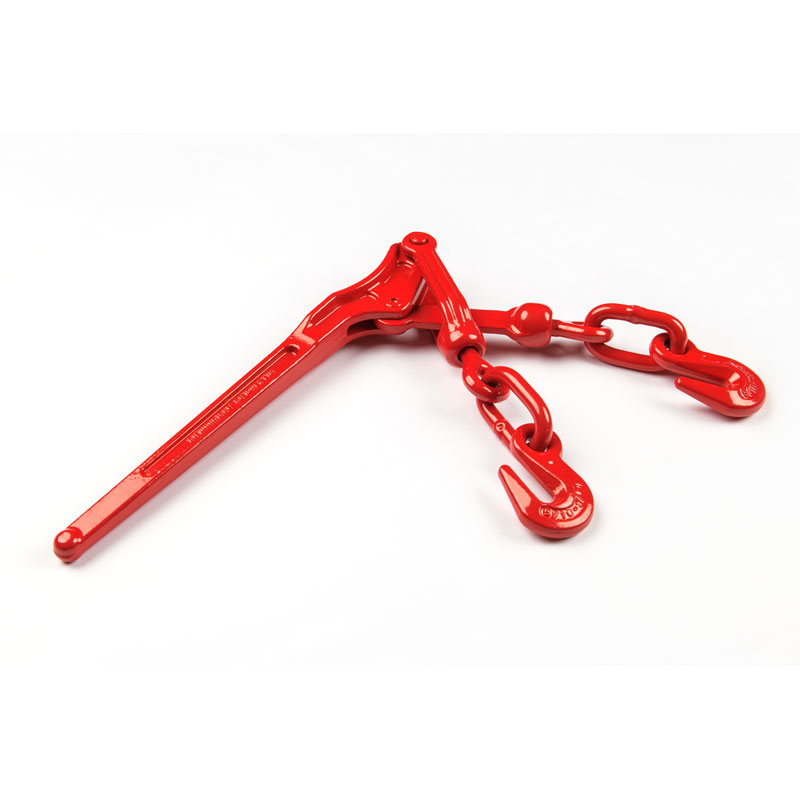

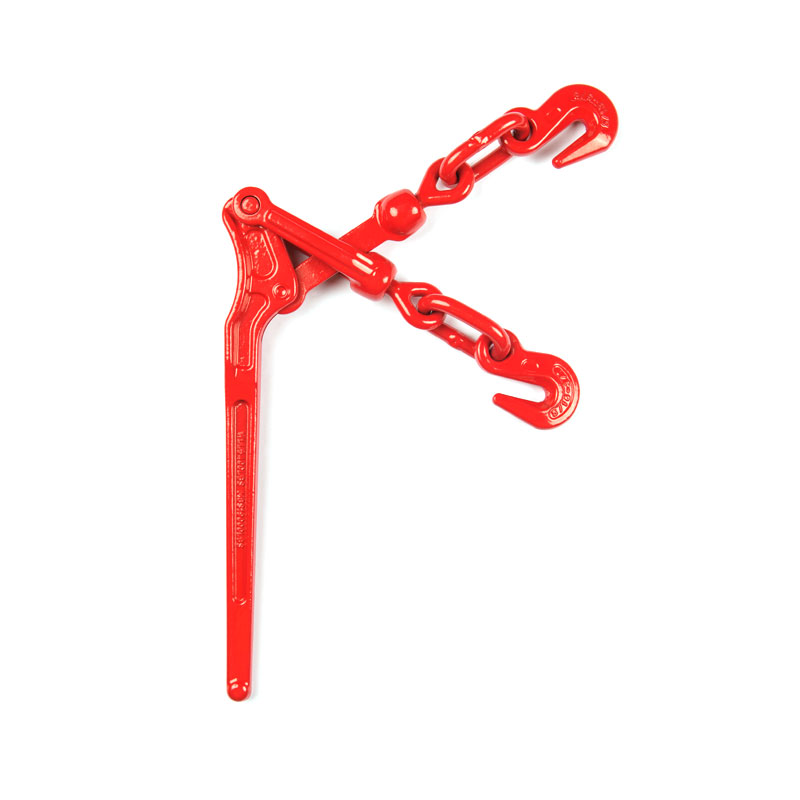

Lever Type Load Binder is Safety, durability designed for all heavy duty transport use. Take up slack and apply tension to a tie down system. Drop forged steel, high strength. Free 360 degree swivel hooks for easier handling. Heat treated for extra strength. Each binder individually proof tested.
Lever Type Load Binder Feature: Safety, durability designed for all heavy duty transport use. Take up slack and apply tension to a tie down system. Drop forged steel, high strength. Free 360 degree swivel hooks for easier handling. Heat treated for extra strength. Each binder individually proof tested.
|
Min-Max Chain Size (in) |
Working load limited(lbs) |
Proof load (lbs) |
Minimun Ultimate load(lbs) |
Weight/Each (lbs) |
Handle Length (in) |
Dimensions(in) | ||||||
| A | B | C | D | E | F | G | ||||||
| 1/4-5/16 | 2280 | 5200 | 7800 | 3.52 | 11.42 | 18.5 | 17.3 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 7.8 | 15.43 | 25.2 | 23.2 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.11 | 17.24 | 28.5 | 26.38 | 22.05 | 17.64 | 12.99 | 12.2 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 18.7 | 21 | 33.86 | 30.12 | 25.78 | 20.87 | 14.37 | 14.37 | 0.74 |
