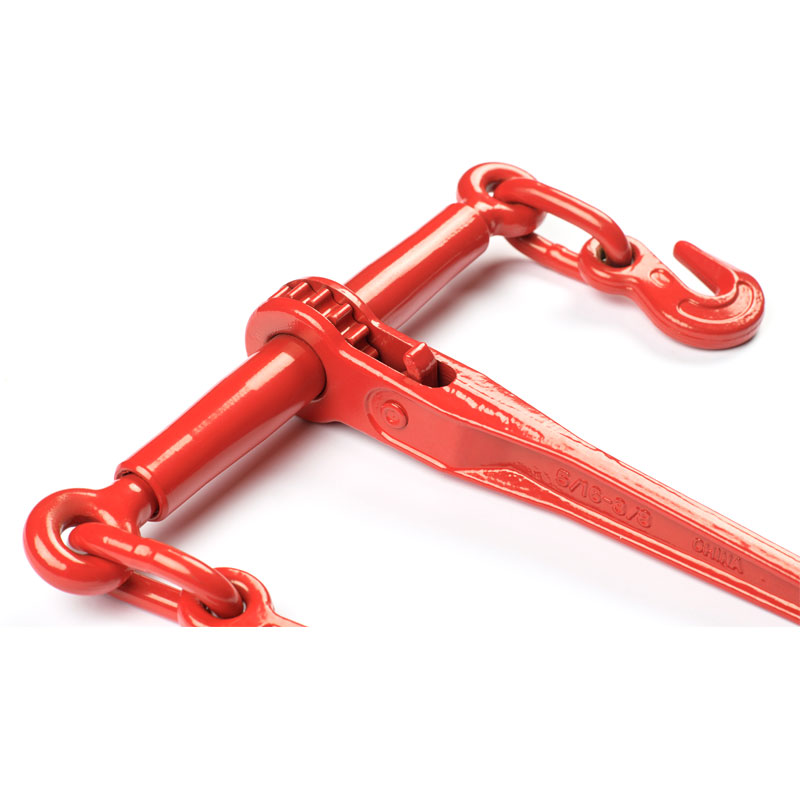

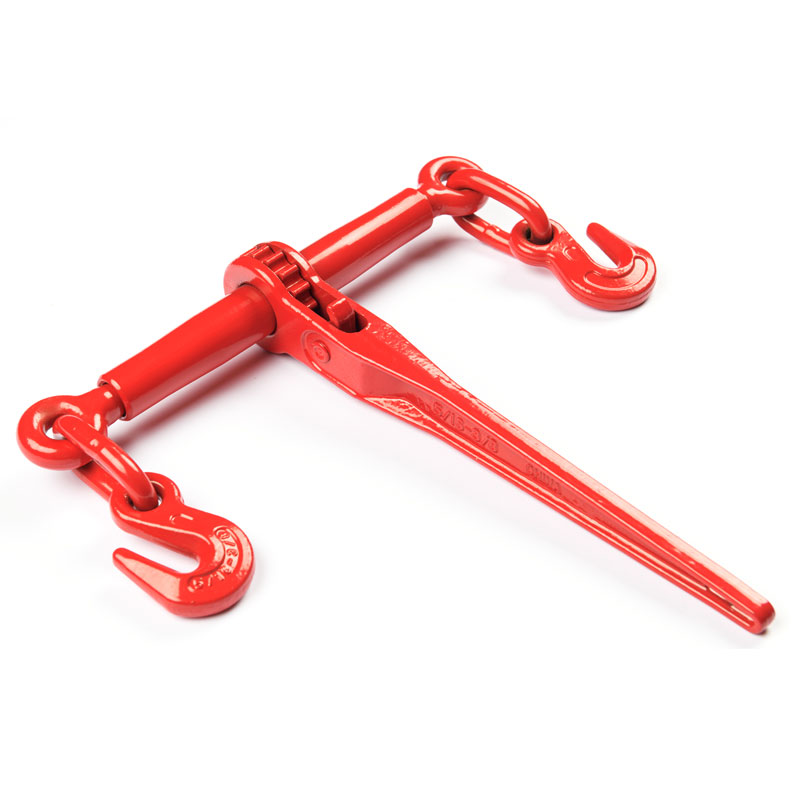

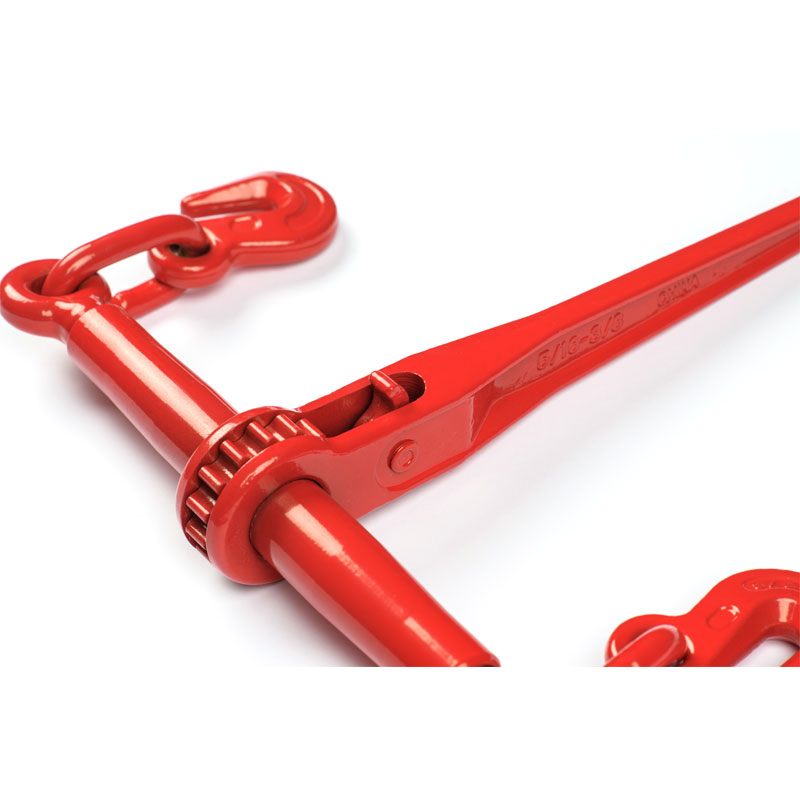

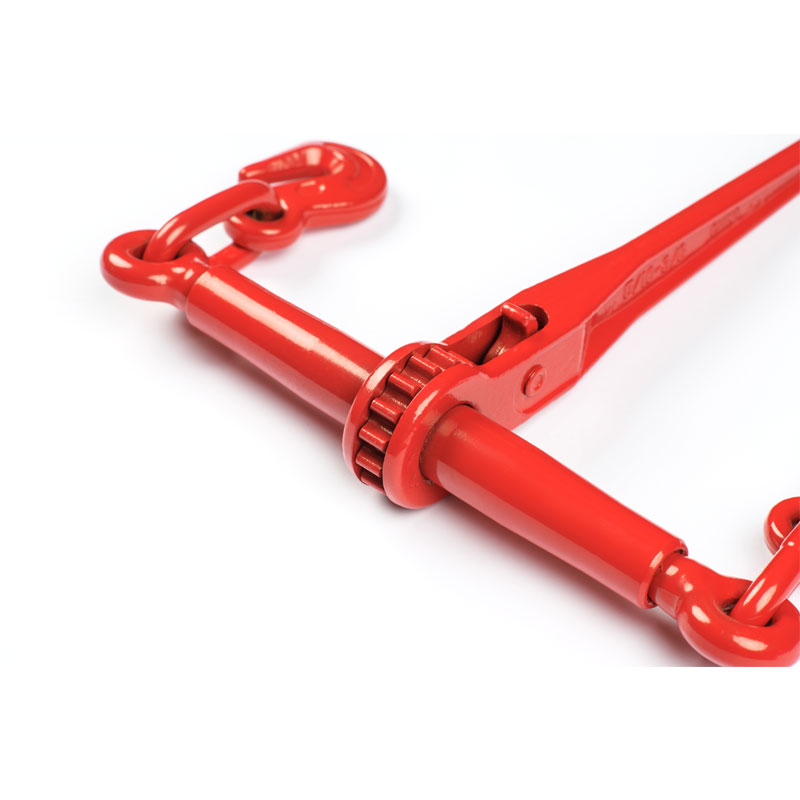

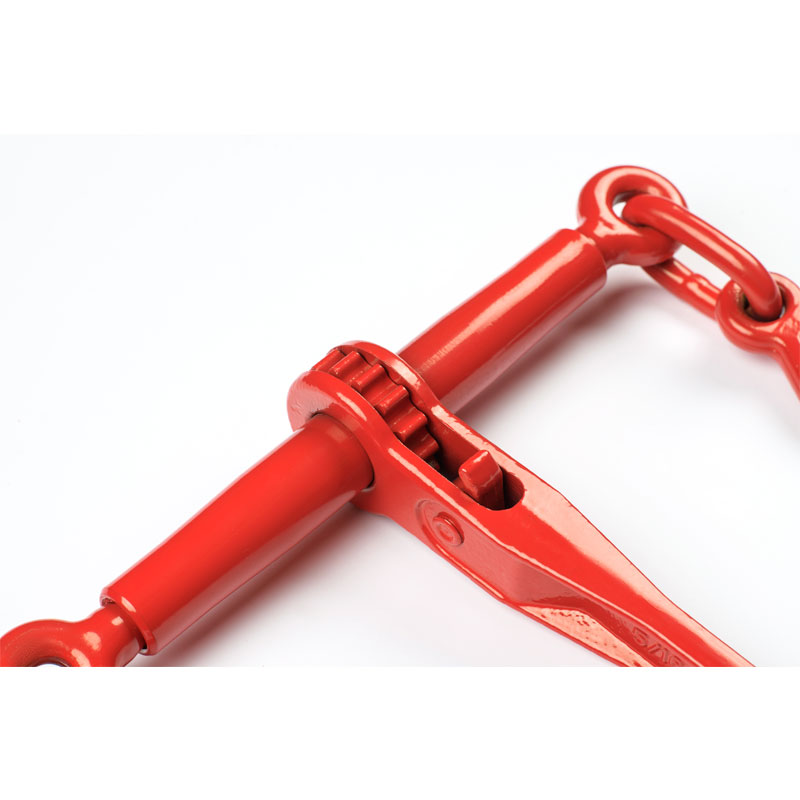

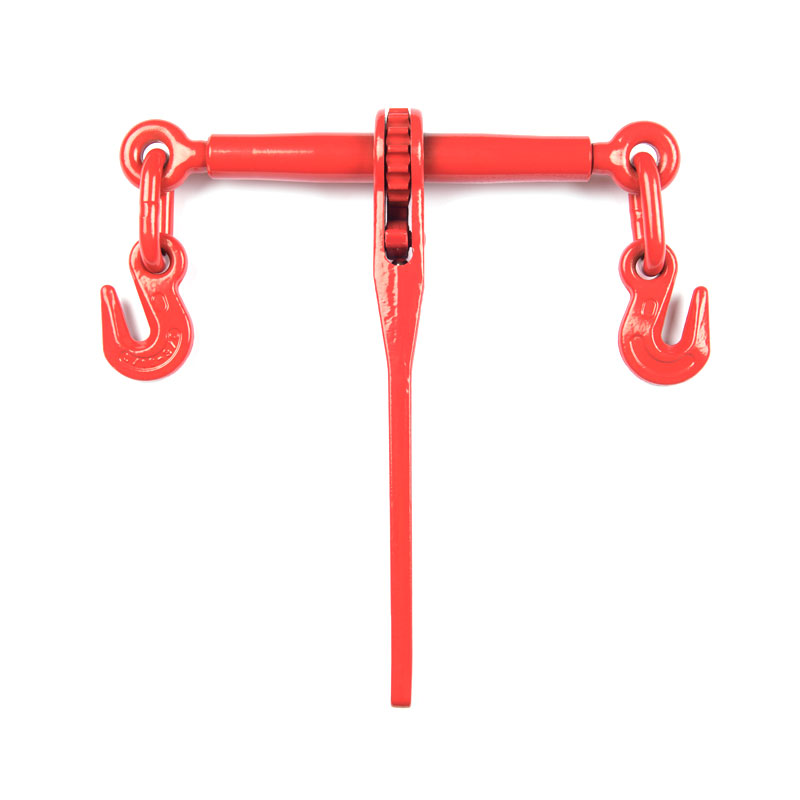

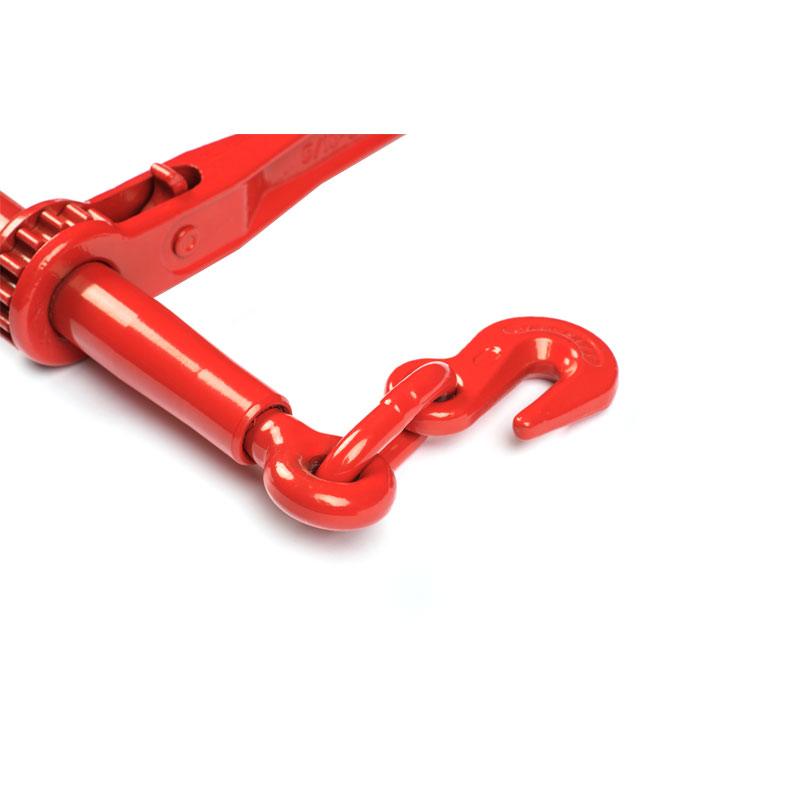

Features of Ratchet Type Load Binder
a.Safety,reliable design for easy operation.
b.No requirement for locking of handle than lever type load binders.
c.High Quality drop forged construction, Heat treated for extra strength.
d.Short reach hooks provide optimum take-up
e.Each binder individually proof tested.
Ratchet Type Load Binder Features
a.Safety,reliable design for easy operation.
b.No requirement for locking of handle than lever type load binders.
c.High Quality drop forged construction, Heat treated for extra strength.
d.Short reach hooks provide optimum take-up
e.Each binder individually proof tested.
|
Min-Max Chain Size (in) |
Working load limited(lbs) |
Proof load (lbs) |
Minimun Ultimate load(lbs) |
Weight/Each (lbs) |
Handle Length (in) |
Dimensions(in) | |||||||
| A | B | C | E | E1 | F | F1 | G | ||||||
| 1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 7.16 | 7.16 | 89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.42 | 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.2 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.14 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
