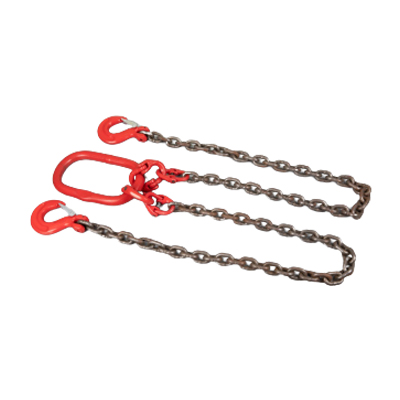

This Chain Slings with G80 Hook is widely used for lifting loads in various regions and companies such as mining, machinery, harbors, buildings, steel mills, steel pipe mills, gasoline pipe installation companies, etc.
Chain Slings with G80 Hook Feature
This double leg chain is widely used for lifting loads in various regions and companies such as mining, machinery, harbors, buildings, steel mills, steel pipe mills, gasoline pipe installation companies, etc.
Chain Slings with G80 Hook Specification
Size | Width(mm) | Weight kg/m | W.L.L.(T) | Test load | Min.breaking(KN) | |
Inside | outside | |||||
6*16 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2 |
7*21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
8*24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 |
10*30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125 |
