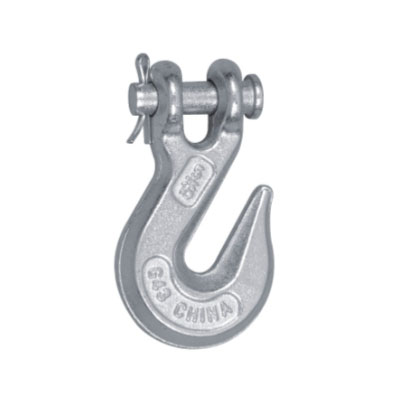

Forged Clevis Grab Hook
US Type
Material:45#(G43),40CR(G70)
Ultimate load=WLL*3(G43),WLL*4(G70)
Surface treatment:self-color zinc pleated, hot dip galvanized
Forged Clevis Grab Hook Introduction
US Type
Material:45#(G43),40CR(G70)
Ultimate load=WLL*3(G43),WLL*4(G70)
Surface treatment:self-color zinc pleated, hot dip galvanized
Forged Clevis Grab Hook Specification
Item No. | Chain Size (in) | Working load(LBS) | Dimension(in) | Weight(KGS) | ||||
H-300 | A-300 | B | E | P | R | |||
90010000 | 1/4 | 2600 | 3600 | 0.36 | 0.4 | 0.38 | 1.97 | 0.18 |
90010001 | 5/16 | 3900 | 5400 | 0.4 | 0.44 | 0.44 | 2.26 | 0.3 |
90010002 | 3/8 | 5400 | 7500 | 0.48 | 0.5 | 0.47 | 2.63 | 0.51 |
90010003 | 1/2 | 9200 | 12750 | 0.75 | 0.66 | 0.63 | 3.19 | 1.5 |
