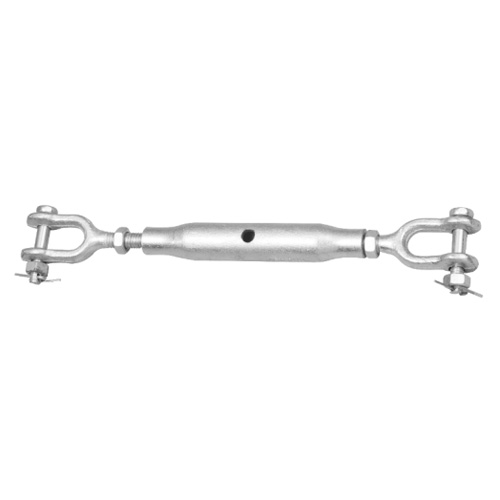

Close Body Turnbuckle is use of high-quality steel, anti rust, corrosion resistance, durable, easy to shrink.
Feature of Close Body Turnbuckle
The use of high-quality steel, anti rust, corrosion resistance, durable, easy to shrink
Specification of Close Body Turnbuckle
| SWL | Diameter screw | Length of body | Dia of body | Dia | Dia pin | Inside | Inside | Per piece | |||
| Length | Width | Dia | Length | Width | |||||||
| tons | mm | mm | mm | D1 | D2 | D3 | D4 | E1 | E2 | E3 | |
| mm | mm | mm | mm | mm | mm | mm | kgs | ||||
| 0.1 | 6 | 102 | 12 | 3 | 5 | 15 | 7 | 6 | 15 | 8 | 0.11 |
| 0.15 | 8 | 110 | 15 | 4 | 6 | 16 | 9 | 7 | 19 | 10 | 0.23 |
| 0.375 | 10 | 152 | 21 | 5 | 8 | 21 | 11 | 8 | 25 | 11 | 0.28 |
| 0.5 | 12 | 175 | 27 | 6 | 10 | 25 | 13 | 11 | 30 | 14 | 0.8 |
| 0.75 | 16 | 229 | 27 | 10 | 12 | 40 | 18 | 14 | 41 | 16 | 1.4 |
| 1.125 | 20 | 229 | 33 | 12 | 16 | 45 | 20 | 16 | 51 | 22 | 2 |
| 1.6 | 22 | 305 | 33 | 15 | 18 | 48 | 24 | 16 | 51 | 22 | 3.5 |
| 2 | 24 | 325 | 42 | 16 | 22 | 65 | 28 | 19 | 57 | 25 | 4 |
| 2.75 | 28 | 356 | 48 | 18 | 22 | 59 | 30 | 19 | 57 | 28 | 4.5 |
| 3.75 | 33 | 381 | 48 | 20 | 27 | 62 | 34 | 22 | 65 | 35 | 6.5 |
| 4.25 | 35 | 381 | 60 | 22 | 28 | 68 | 38 | 22 | 65 | 36 | 8 |
| 5 | 39 | 406 | 60 | 24 | 33 | 74 | 42 | 25 | 74 | 38 | 11 |
