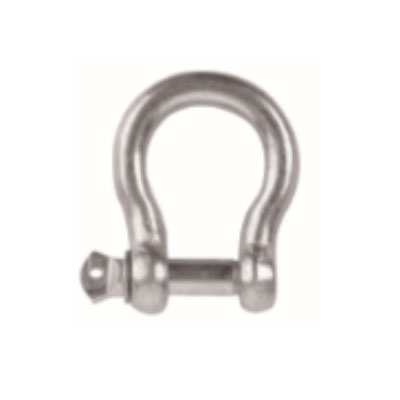

Commercial Galv.Bow Shackle
  • Commercial Galv.Bow ShackleCommercial Galv.Bow Shackle

Commercial Galv.Bow Shackle

Feature of Commercial Galv.Bow Shackle Europe type
Material:Q235
Forged Steel
Surface Treatment:Self-color, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, powder coating

Send Inquiry    PDF DownLoad

Product Description


Commercial Galv.Bow Shackle Feature

Europe type
Material:Q235
Forged Steel
Surface Treatment:Self-color, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, powder coating

Commercial Galv.Bow Shackle Specification

Size D d B H R SWL
mm mm mm mm mm mm tons
5 5 5 10 19.5 15 0.08
6 6 6 12 24 18 0.1
8 8 8 16 32 24 0.2
10 10 10 20 40 30 0.32
11 11 11 22 44.5 33 0.4
12 12 12 25 49 36 0.52
14 14 14 28 59 42 0.65
16 16 16 32 64 48 0.8
18 18 18 36 71 54 1
20 19 20 38 80 60 1.1
22 22 22 44 85 66 1.5
25 25 24 50 100 75 2.1
28 28 27 56 116 86 3
32 32 33 64 129 96 3.5
38 38 39 76 151 114 5
