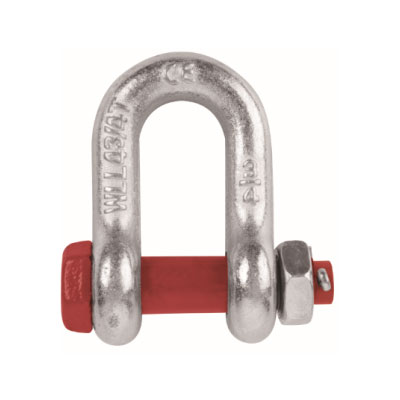

US TYPE High Tensile Forged Shackle G2150
  • US TYPE High Tensile Forged Shackle G2150US TYPE High Tensile Forged Shackle G2150

US TYPE High Tensile Forged Shackle G2150

Feature of US TYPE High Tensile Forged Shackle G2150 US type
Material:40cr
Forged Steel
Ultimate load:W.L.L*4
Surface Treatment:Self-color, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, powder coating

Send Inquiry    PDF DownLoad

Product Description


US TYPE High Tensile Forged Shackle G2150 Feature

US type
Material:40cr
Forged Steel
Ultimate load:W.L.L*4
Surface Treatment:Self-color, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, powder coating

US TYPE High Tensile Forged Shackle G2150 Specification

Nominal Size  Working load limit(tons) Dimensinons(mm) Weight each
A B C D E F G H I
1/4 1/2 11.9 7.85 6.35 15.5 19.1 40.4 24.6 39.6 6.35 0.06
5/16 3/4 13.5 9.65 7.85 19.1 25.4 48.5 29.5 46.2 7.85 0.1
3/8 1 16.8 11.2 9.65 23.1 31 58.5 35.8 55 9.65 0.15
7/16 1-1/2 19.1 12.7 11.2 26.9 36.1 67.5 41.4 63.5 11.2 0.22
1/2 2 20.6 16 12.7 30.2 41.4 77 46 71 12.7 0.34
5/8 3-1/4 26.9 19.1 16 38.1 51 95.5 58.5 89.5 17.5 0.67
3/4 4-3/4 31.8 22.4 19.1 46 60.5 115 70 103 20.6 1.14
7/8 6-1/2 36.6 25.4 22.4 53 71.5 135 81 120 24.6 1.74
1 8-1/2 42.9 28.7 25.4 60.5 81 151 93.5 135 25.4 2.52
1-1/8 9-1/2 46 31.8 28.7 68.5 91 172 103 150 31.8 3.45
1-1/4 12 51.5 35.1 31.8 76 100 191 115 165 35.1 4.9
1-3/8 13-1/2 57 38.1 35.1 84 111 210 127 183 38.1 6.24
1-1/2 17 60.5 41.4 38.1 92 122 230 137 196 41.1 8.39
1-3/4 25 73 51 44.5 106 146 279 162 230 54 14.2
2 35 82.5 57 51 122 172 312 184 264 51 21.2
2-1/2 55 105 70 66.5 145 203 377 238 344 66.5 38.6
3 85 127 82.5 76 165 216 429 279 419 89 56
